EP-0239

N06 M.2 NVME SSD USB Adapter for RPi 5

Descriptions

The N06 M.2 NVMe SSD USB Adapter is a compact and versatile expansion board designed to seamlessly integrate with the Raspberry Pi 5. It provides a convenient way to connect M.2 NVMe SSDs to your Raspberry Pi via a USB 3.0 interface, enhancing storage capabilities without the need for additional cabling or system configuration changes.

NOTE: This adapter board support M.2 NVME ONLY!!! And only support our own USB converter!
NOTE: This adapter board support M.2 NVME ONLY!!! And only support our own USB converter!
NOTE: This adapter board support M.2 NVME ONLY!!! And only support our own USB converter!

Features

• USB 3.0 Interface: Communicates with the Raspberry Pi 5 using a single USB 3.0 connection for both power and data transfer.
• Plug-and-Play: Instantly recognized by the Raspberry Pi without the need for system modifications or additional drivers.
• Versatile SSD Support: Compatible with a range of M.2 NVMe SSD sizes including 2230, 2242, 2260, and 2280.
• Easy Installation: Designed to be mounted on the bottom of the Raspberry Pi for a clean and tidy setup.
• High-Speed Data Transfer: Leverages the USB 3.0 bandwidth to achieve high read/write speeds, enhancing the overall performance of the Raspberry Pi.

Specifications

• Form Factor: M.2 NVMe SSD Adapter
• Interface: USB 3.0 Type-A to M.2
• SD Sizes Supported: 2230, 2242, 2260, 2280
• Data Transfer Rate: Up to the maximum speed supported by USB 3.0 (5 Gbps)
• *Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Capacity: Varies depending on the SSD used (up to 4TB as per current SSD offerings)
• Power Requirements: Powered through USB 3.0 connection

Gallery

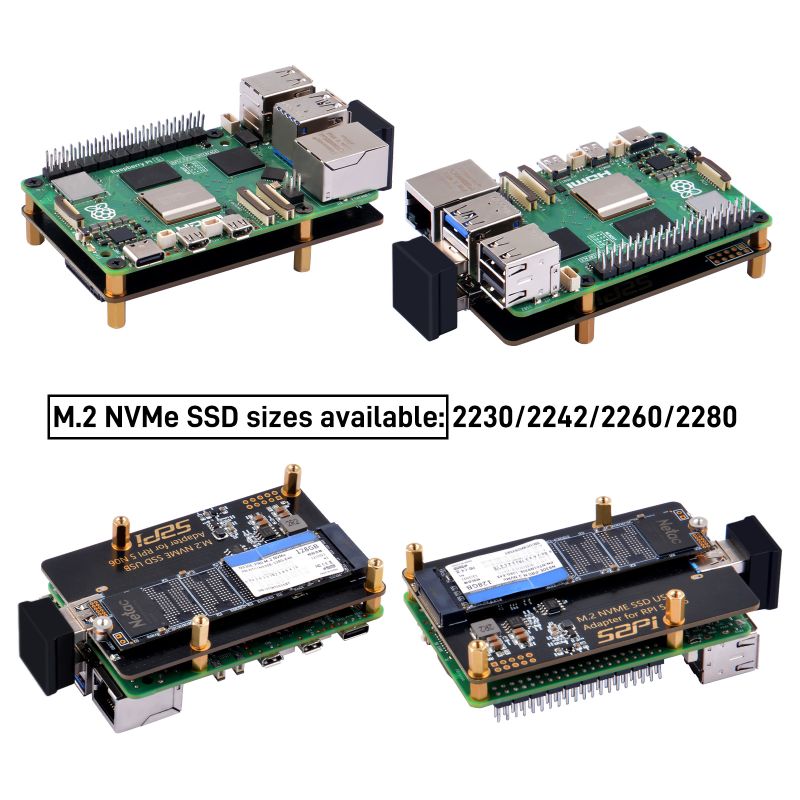

• Product outlook

• Dimension

Package Includes

How to assemble it?

• Please assemble it according to following figure.
